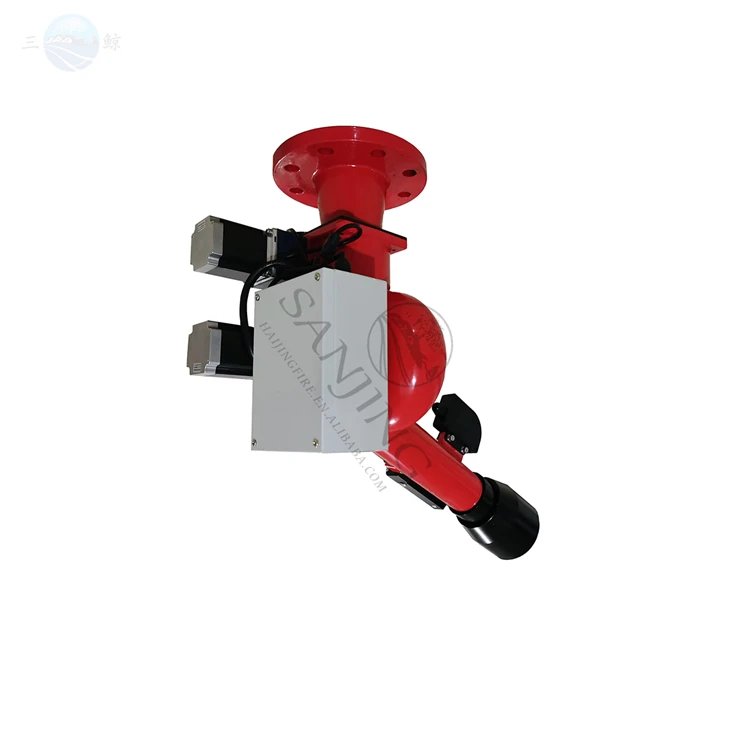

Automatic Water Fire Monitor
"Automatic Fire Water Monitor" is a sophisticated firefighting device designed to automatically detect and locate fire sources, and then extinguish fires by delivering water or water/foam solutions over long distances. These monitors are typically mounted on fixed or mobile platforms and can be remotely controlled.
Fujian Haijing Fire Fighting Equipment Co., Ltd. is one of the leading manufacturers and suppliers of automatic water fire monitor in China, also supports customized service. Please feel free to wholesale cheap automatic water fire monitor from our factory.
Features of Automatic Water Fire Monitor
-
Model: ZDMS0.6/5s
-
Nozzle: 2.5"
-
Flow Rate (±8%) : 5L/s
-
Rated Working Pressure: 0.6Mpa
-
Jetting Radius: 34m
-
Max. Protection Radius: 30m
-
Monitor Radius: 40m
-
Positioning Time: ≤30s
-
Voltage: DC12~24V
-
Installation Height: 6~20m
-
Horizontal Rotation Angle: 360°
-
Vertical Rotation Angle: -10°~+55°
-
Connection Flange: G1-1/4", Female Thread Flange
-
Operation Radius: 350mm
Image Details of Automatic Water Fire Monitor
Advantages of Automatic Water Fire Monitor
1. Highly Targeted Fire Suppression: Automatic fire water monitors can provide highly targeted suppression capabilities, allowing for precise positioning of fire-extinguishing media (water, foam, or wetting agent) on a hot spot from a safe distance.
2. Swift Response Times: These monitors are designed to respond quickly to fire detection, initiating their response without human intervention, which significantly reduces response time compared to manual firefighting methods.
Company Information
FAQ
Q: How does an Automatic Water Fire Monitor detect a fire?
A: An automatic fire water monitor detects a fire using advanced sensors, such as infrared or thermal detectors, which are capable of identifying heat signatures or flames. Once a fire is detected, the monitor activates and begins to track the fire's location.
Q: Can an Automatic Water Fire Monitor be used in outdoor environments?
A: Yes, automatic fire water monitors can be used in outdoor environments. They are designed to withstand various weather conditions and can be strategically placed to protect outdoor areas such as storage yards, loading docks, or large open spaces.
Contact us
Mary Chen
WhatsApp/WeChat: +86-18359194029
Email: sales03@sanjingfire.com
<br>
comparison of product parameters
| Products model | PS8/20 | PS8/30~40 | PS8/50 |
| Products material | Aluminum Alloy | ||
|
Rated W.P. (MPa) |
0.8 | 1.0 | |
| Working Pressure Range(MPa) | 0.5~1.6 | ||
|
Distance(m) |
55 | 60/65 | 70 |
|
Angle Of Horizontal Rotation(º) |
360 | ||
|
Angle Of Vertical Rotation(º) |
-60 ~ +70 | ||
|
Installation Mode |
Seating Arrangement |
||
|
Service Environment |
-10℃-+50℃ |
||
