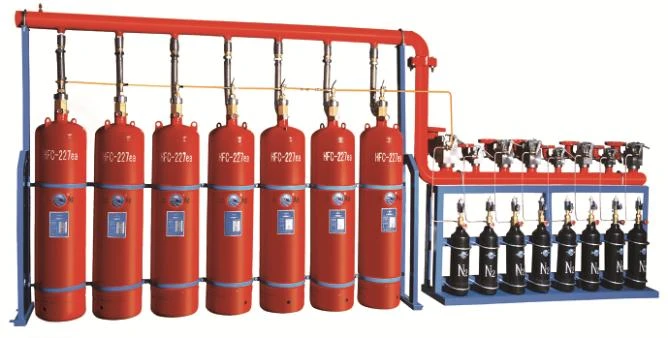

FM200 Piped System

Name: China FM200 Piped System Manufacturers Suppliers Factory - Haijing Fire Fighting Equipment
Brand: Sanjing
SKU: 309808863

The SANJING Brand Pipeline Type FM200 Automatic Fire Extinguishing System is a modern intelligent fire suppression solution. It combines gas fire extinguishing, automatic control, and fire detection in one integrated system.
The entire system features advanced technology, reasonable structure, convenient operation, and simple maintenance. Every component is designed to serve its specific function while maintaining overall system coordination and reliability Systematic design

Send Inquiry Chat Now

Fujian Haijing Fire Fighting Equipment Co., Ltd. is one of the leading manufacturers and suppliers of fm200 piped system in China, also supports customized service. Please feel free to wholesale cheap fm200 piped system from our factory.

What Is an FM200 Piped System?

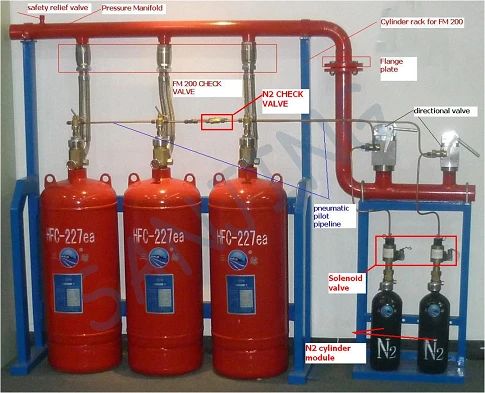

It's a fire suppression system where the FM200 agent sits in a cylinder in a separate room. When a fire is detected, the agent travels through a network of pipes to nozzles in the protected area and discharges.

The "piped" part is important. The cylinders aren't in the room you're protecting. They're somewhere else – a dedicated cylinder room, a plant room, a corridor. Pipes connect the cylinders to the protected space.

This is different from a cabinet system, where the cylinder sits inside the protected room, or a hanging unit, which is mounted on the ceiling above the hazard.

Where Do You Use a Piped FM200 System?

Any large, high-value space where you need to protect both people and equipment. The piped system can be designed for multiple rooms from one set of cylinders, using a system called "combined distribution.

Data centers. Server rooms, computer rooms, mainframes. Water damages electronics. FM200 doesn't. It's a clean agent – no residue, no cleanup .
Telecommunications. Switching rooms, exchange buildings, communication hubs. Downtime is expensive. FM200 puts out fires fast, minimizing downtime .
Control rooms. Power plants, industrial facilities, transportation hubs. Critical operations need protection that doesn't damage equipment.
Archives and museums. Historical documents, artwork, rare books. Water and powder destroy irreplaceable items. FM200 leaves no trace .
Medical facilities. Hospitals, operating theaters, medical imaging rooms. FM200 is non-toxic at design concentrations and safe for occupied spaces .
UPS rooms and battery rooms. Electrical rooms with sensitive equipment. FM200 is non-conductive – no short circuits .
Offshore platforms. Marine applications where space is limited and fire risk is high .
Telecom facilities. Switching and transmission equipment. Fast response stops fires before they cause expensive outages.

our company

Factory Introduction ISO

FAQ

Q1: What's the difference between a piped FM200 system and a cabinet system?

A piped system has cylinders in a separate room. Pipes run to the protected area and discharge through nozzles. A cabinet system has the cylinder inside the protected room. The agent discharges directly from the cylinder without pipes. Piped is for larger rooms or multiple rooms. Cabinet is for smaller rooms.

Q2: What's the difference between a standard and a piston flow system?

In a standard system, nitrogen is mixed with the FM200 in the cylinder. In a piston flow system, nitrogen and FM200 are in separate cylinders. The nitrogen pushes pure liquid FM200 through the pipes, increasing flow rates by up to 3 times and allowing longer pipe runs (up to 100+ meters).

Q3: How far can a piped FM200 system deliver agent?

Standard systems: up to 30-50 meters depending on pressure . Piston flow systems: up to 100+ meters . This is why piston flow is ideal for retrofitting Halon systems.
