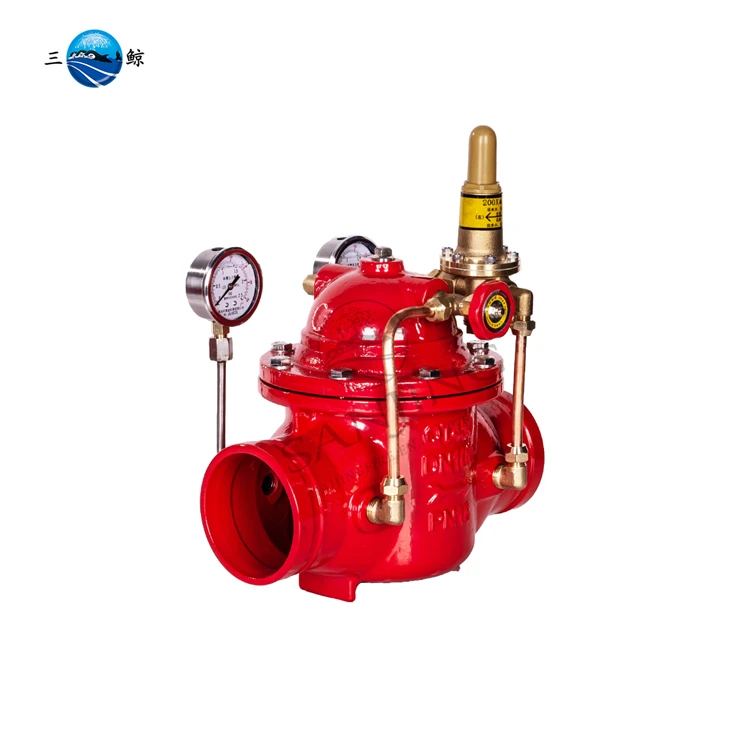

Grooved Water Pressure Control Reducing Valve
A grooved pressure reducing valve is a type of control valve designed to automatically reduce and regulate the pressure of a fluid in a pipeline to a desired level.
It features grooved connections that comply with standards such as ISO 6182, making it suitable for use in fire protection systems, water supply systems, and other industrial applications。
Fujian Haijing Fire Fighting Equipment Co., Ltd. is one of the leading manufacturers and suppliers of grooved water pressure control reducing valve in China, also supports customized service. Please feel free to wholesale cheap grooved water pressure control reducing valve from our factory.
Technical Pameters of Grooved Water Pressure Control Reducing Valve
|
Pressure Reducing Valve Basic Technical Info |
|
|
Body Material |
Ductile Cast Iron |
|
Size |
2" ~ 12" |
|
Rated Working Pressure |
1.6MPa/16Bar/232PSI |
|
Seal Test Pressure |
3.2MPa/32Bar/464PSI |
|
Strength Test Pressure |
6.4MPa/64Bar/928PSI |
|
Outside Diameter Of Flange |
165mm~460mm |
|
Quantity Of Screw Hole & Diameter |
4xφ18 ~ 12xφ26 |
| Connection | Grooved |
Image Details of Grooved Water Pressure Control Reducing Valve
Aplications of Grooved Water Pressure Control Reducing Valve
Fire Protection Systems: Used in sprinkler and standpipe systems to ensure that the downstream pressure remains within a safe and efficient range.
Water Supply Systems: Helps maintain consistent water pressure in residential and commercial buildings.
Industrial Processes: Ensures reliable pressure control in various industrial applications.
Company Information
Q&A
Q: What are the benefits of using a Grooved Water Pressure Control Reducing Valve in a fire protection system?
A: The benefits include pressure control, energy efficiency, and safety. By maintaining optimal pressure, it helps reduce energy consumption and operational costs. It also ensures that systems operate within safe pressure limits, reducing the risk of accidents and equipment failure.
Q: How can I adjust the pressure setting on a Grooved Water Pressure Control Reducing Valve?
A: To adjust the pressure setting, first shut off the water supply and relieve any residual pressure. Locate the adjustment screw or knob on the valve, loosen the lock nut if applicable, and turn the adjustment screw clockwise to increase pressure or counterclockwise to decrease pressure. Test the pressure downstream using a gauge and make incremental adjustments until the desired pressure is achieved. Finally, tighten the lock nut to secure the setting.
