how to Classify sprinkler According to Install Type and Sprinkled Shape

Classified According to Install Type and Sprinkled Shape

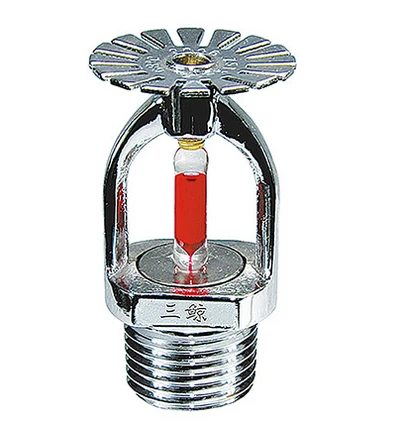

Upright Fire Sprinkler

Sprinkler mounted upright on the water supply pipe sprinkled shape is the parabolic shape. The 60% - 80% of the water spray down, while there is some spray to the ceiling.

Pendent Fire Sprinkler

Sprinkler mounted upright on the water supply pipe sprinkled shape is the parabolic shape. The 80% of the water spray down.

Sidewall Fire Sprinkler

The nozzle is divided into horizontal and vertical forms. Sprinkled shape is the semi-parabolic shape, it will be directly sprinkled water to the protected area.

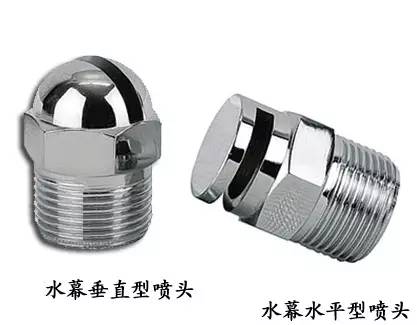

Water Curtain Sprinkler

When the fire occurs, the detection alarm device make alarm, and open the deluge alarm valve to supply water to the pipe network system, the water flow through the semi-circular opening nozzle in a predetermined direction, to eject dense and particles water droplets and create a water curtain, to cool fire protection shutter doors, theater curtains and so on. Can also play a role in fire isolation.

Ceiling - type Fire Sprinkler ( Concealed Fire Sprinkler )

Sprinklers are installed on the water supply pipe concealed in the ceiling.They are divided into flush, semi-concealed and concealed three forms. The sprinkled shape of the nozzle is parabolic.
