Deluge Valve Operation
SANJING Fire Deluge Alarm Valve is mainly composed of the valve body, pressure switch, anti-reset device, water alarm gong, automatic drip valve, solenoid valve and connecting pipe fittings.
Fujian Haijing Fire Fighting Equipment Co., Ltd. is one of the leading manufacturers and suppliers of deluge valve operation in China, also supports customized service. Please feel free to wholesale cheap deluge valve operation from our factory.

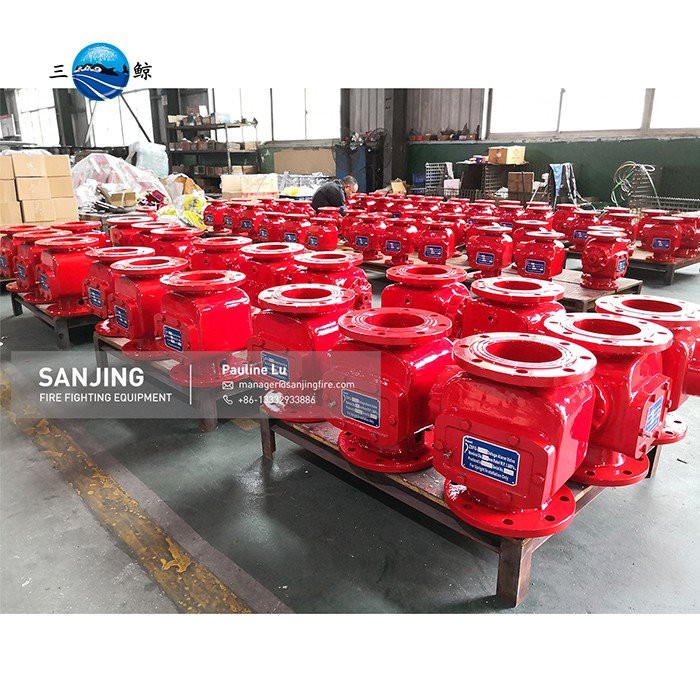

SANJING Fire Deluge Alarm Valve is mainly composed of the valve body, pressure switch, anti-reset device, water alarm gong, automatic drip valve, solenoid valve and connecting pipe fittings. It is a direct sealed diaphragm valves, widely used in various types of open systems such as automatic sprinkler system, water mist system, water curtain system. Enjoying advantages of simplexes in structure, flexibility in installation ,reliance in performance and convenience in maintenance.
Parameter
Deluge Alarm Valve, Diaphragm Chamber Sealing, 2" to 12"
1) Size: DN50-DN300
2) Flange holes match to: PN16 / BS4504 / EN1092 / DIN2502 / ANSI150lb
3) Rated working pressure: 1.6MPa / 16bar / 235psi
4) Material: galvanized accessory pipe, ductile cast iron body, rubber seal, brass accessory valves
5) With all fittings include pressure gauge, water motor bell, pressure switch, solenoid valve etc.
|
Deluge Alarm Valve (Lever) Basic Technical Infos |
||||||
|
Model |
ZSFM80 |
ZSFM100 |
ZSFM125 |
ZSFM150 |
ZSFM200 |
ZSFM250 |
|
Inside Nominal Diameter (mm) |
80 |
100 |
125 |
150 |
200 |
250 |
|
Rated Working Pressure (MPa) |
1.6 |
|||||
|
Sealed Test (MPa) |
3.2 |
|||||
|
Strength Test (MPa) |
6.4 |
|||||
|
Starting Time (s) |
≤15 |
≤60 |
||||
|
Friction Resistance |
≤0.07 |
|||||
|
Maximum Installation Width (mm) |
755 |
755 |
830 |
840 |
900 |
940 |
|
Height of Valve (mm) |
330 |
330 |
350 |
350 |
430 |
500 |
|
Outside Diameter of Flange (mm) |
200 |
220 |
250 |
285 |
340 |
405 |
|
Diameter Between Flange Screw Hole (mm) |
160 |
180 |
210 |
240 |
295 |
355 |
|
Diameter of Screw Hole (mm) |
8 |
12 |
||||
|
Quantity of Screw Hole |
18 |
22 |
26 |
|||
Q&A
Q: Are you a factory or trading company?
A: We are a manufacturer established over 30 years.
Q: What packaging do you use for this product?
A: We pack this alarm valve separately in a wooden box.
Q: Can you do our own packaging?
A: Yes, We can design packaging and products completely according to your brand.
Q: What is your delivery time?
A: We have our own foundry, so we can shorten our production period, estimated around 20 days.
