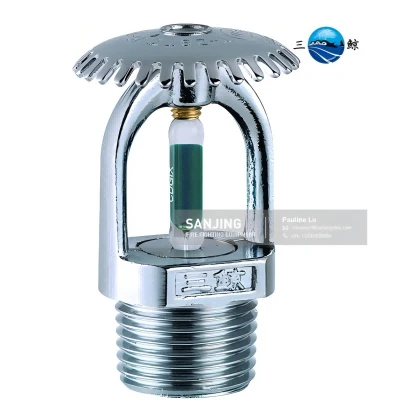

Special Response Sprinkler
An upright fire sprinkler is a type of fire sprinkler head designed to be installed in an upward-facing position.
It sprays water upward to a concave deflector, producing a dome-shaped spray pattern.
These sprinklers are typically installed in areas where obstructions, such as beams or ductwork, could interfere with the water distribution pattern of a pendant sprinkler.
Fujian Haijing Fire Fighting Equipment Co., Ltd. is one of the leading manufacturers and suppliers of special response sprinkler in China, also supports customized service. Please feel free to wholesale cheap special response sprinkler from our factory.
Technical Pameters of 93 Degree Automatic Upright Fire Sprinkler
|
Fire Sprinkler Basic Technical Info |
||||||
|
Installation Method |
Nominal Diameter (mm) |
Connection Thread (mm) |
Flow Coefficient (K) |
Respond |
Temperature (℃) |
Surface Colour |
|
Upright |
DN15 |
1/2 |
80(5.6) |
S-Fast (2.5mm)
Fast (3mm)
Standard (5mm) |
57/68/79/93/114 |
Chrome/White/Brass Natural Color |
|
DN20 |
3/4 |
115(8) |
||||
|
Pendent |
DN15 |
1/2 |
80(5.6) |
|||
|
DN20 |
3/4 |
115(8) |
||||
|
Sidewall |
DN15 |
1/2 |
80(5.6) |
|||
|
DN20 |
3/4 |
115(8) |
||||
|
Concealed |
DN15 |
1/2 |
80(5.6) |
|||
|
DN20 |
3/4 |
115(8) |
||||
|
Fire Sprinkler Glass Bulb |
||
|
Temperature Rating ℃ |
Max Ambient Temperature ℃ |
Color Standard |
|
57 |
27 |
Orange |
|
68 |
38 |
Red |
|
79 |
49 |
Yellow |
|
93 |
63 |
Green |
|
141 |
111 |
Blue |
How does an upright fire sprinkler differ from a pendant one?
1. Installation Orientation:
Upright Sprinklers: Installed in an upright position with the deflector above the sprinkler head. They are designed to spray water upward to a concave deflector, producing a dome-shaped spray pattern.
Pendant Sprinklers: Installed with the deflector pointing downward, towards the floor. They distribute water in a conical pattern.
2. Water Distribution Pattern:
Upright Sprinklers: Distribute water in a circular pattern, providing a wide range of coverage.
Pendant Sprinklers: Provide a more focused stream of water, making them ideal for areas with tight spaces or obstructions.
Image Details of 93 Degree Automatic Upright Fire Sprinkler
Company Information
Q&A
Q: How often should 93 Degree Automatic Upright Fire Sprinklers be inspected?
A: Upright fire sprinklers should be inspected at least annually to ensure they are in proper working condition. This includes checking for leaks, corrosion, and proper operation of the sprinkler head.
Q: What are the benefits of using 93 Degree Automatic Upright Fire Sprinklers in industrial settings?
A: The benefits include their ability to provide wide coverage in open spaces, their robust construction suitable for industrial environments, and their effectiveness in controlling fires in areas with high ceilings or obstructions.
