SR / QR Fire Sprinkler
Heat-activated – Opens automatically at preset temperature
Control device option – Can also be activated by fire signal
Designed spray pattern – Water discharged in specific shape
Controlled flow rate – Delivers right amount of water for fire suppression
Fujian Haijing Fire Fighting Equipment Co., Ltd. is one of the leading manufacturers and suppliers of sr / qr fire sprinkler in China, also supports customized service. Please feel free to wholesale cheap sr / qr fire sprinkler from our factory.
Products Description
SR / QR Fire Sprinkler Basic Technical Info | |
| Material | Brass |
| Surface Color | Chrome/ White /Self-color |
| Connection Thread | BSP/NPT |
| Temperature Rating(°C) | 57°C/68°C/79°C/93°C/141°C |
| Respond | Standard Response /Quick Response |
| Installation Method | Upright/ Pendent/Sidewall / Concealed |
SR – Standard Response
Standard Response sprinklers have been around for over 100 years. They work. They're proven. They're cheaper than quick response. The bulb is 5mm in diameter. It takes a little longer to heat up. That's intentional. In some fires, a slower response is better. It allows time for the fire to grow to a size that the sprinkler can handle. It also prevents false alarms from minor heat sources.
Response Time Index (RTI): SR sprinklers have an RTI of 80 or higher. That's a technical measure of how fast the sprinkler responds. Bigger number = slower.
Where to use SR:
- Warehouses with high ceilings
- Manufacturing plants
- Storage facilities
- Parking garages
- Anywhere with normal fire growth rates
Pros: Cheaper, widely available, proven reliability.
Cons: Slower to respond, may allow fire to grow larger.
Typical applications: Industrial buildings, storage, parking structures.
QR – Quick Response
Quick Response sprinklers are newer. They respond faster. Much faster.
The bulb is 3mm in diameter. Smaller bulb means less mass to heat up. The sprinkler opens in half the time of an SR sprinkler.
Response Time Index (RTI): QR sprinklers have an RTI of 50 or lower.
Where to use QR:
- Hospitals and nursing homes
- Hotels and motels
- Apartment buildings
- Schools and daycares
- Offices and commercial buildings
- Anywhere with people who need extra time to evacuate
Pros: Faster response, less fire growth, less smoke, less water damage. Better for life safety.
Cons: More expensive, more sensitive to false alarms (though still rare).
Typical applications: Residential, commercial, institutional – anywhere people sleep or need extra protection.

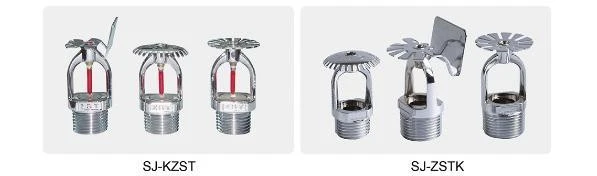

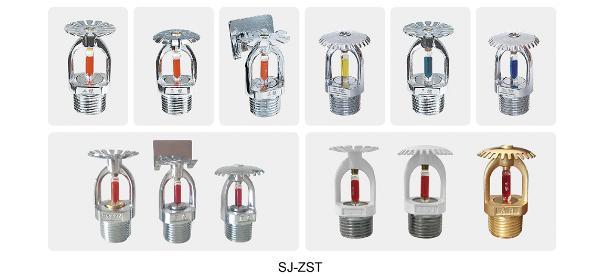

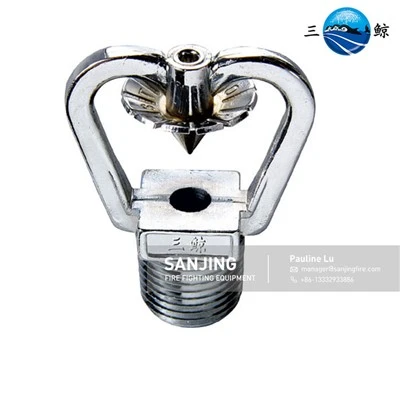

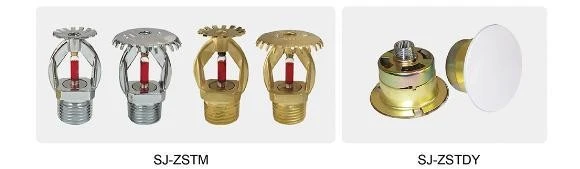

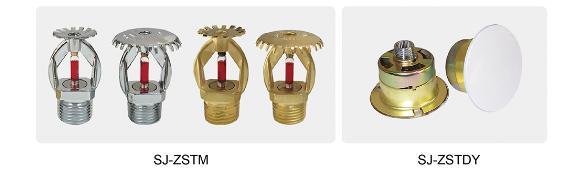

Product Photos
Company Information
FAQ
FAQ
Q1: What's the difference between SR and QR sprinklers?
SR (Standard Response) has a 5mm glass bulb and responds slower. QR (Quick Response) has a 3mm glass bulb and responds about 50% faster. QR is better for life safety – hospitals, hotels, homes. SR is for industrial and storage spaces.
Q2: Which one should I use in an office building?
Quick Response (QR). Most building codes require QR sprinklers in occupied commercial spaces. They respond faster, which means less fire growth, less smoke, and more time for people to evacuate.
Q3: What do the glass bulb colors mean?
Each color represents a different temperature rating: Orange (135°F), Red (155°F – most common), Yellow (175°F), Green (200°F), Blue (286°F), Purple (360°F). Pick a rating at least 30°F above the normal room temperature to avoid false trips.
